Gate Valve Part 2

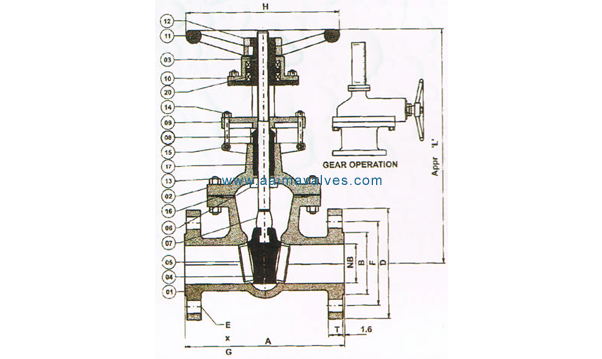

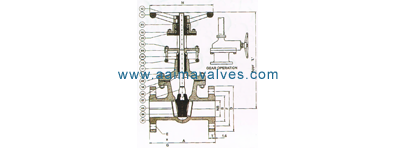

PARTS / MATERIALS LIST
Part No. DESCRIPTION MATERIAL
1 BODY WCB WC6 A 352 LCB CF8/CF8M CF3/CF3M
2 BONNET WOE WC6 A 352 LCB CF3/CF3M CF3/CF3M
3 YOKE WCB WC6 A 352 LCB CF3/CF3M CF3/CF3M
4 WEDGE CA15113% Cr. FACING ON WCB+ STELLITED VVc6+ SELLITED LCB+ SELLITED CF8/CF8M SELLITED CF3/CF3M SELLITED
5 SEAT RING A515-70/13%Cr. STELLITED S.S.304 + STELLITED S.S.304 + STELLITED T304L/T316L.CF3/ CF8M STELLITED T304UT316L.CF31 CF8M STELLITED
6 BACK SEAT AlS1410 INTEGRAL INTEGRAL
7 SPINDLE AlS1410 T3041T316 T304/T316
8 GLAND BUSH AlS1410 T3041T316 T304/T316
9 GLAND FLANGE WCB WC6 LCB S. S. 304 S. S. 304L
10 YOKE SLLEVE Ni-Resisit/S G. Iron
11 HAND WHEEL CARBON STEEL
12 HAND WHEEL NUT CARBON STEEL I S. S. 304 S.S.304L1316L
13 STUD & NUT B7/2H I B16/7 B16/7 B7/2H B7/2H
14 EYE BOLT & NUT B7/2H B8/8 B8/8M
15 CROSS BOLT & NUT B7/2H B8/8 B8/8M
16 GASKET COMPRESEED ASBESTOS FIBRE/S.S. 304 SPR1AL WOUND WITH CAF
17 GLAND PACKING METALLIC WIRE REINFORCED GRAPHITEDASBESTOS/GRAPHOIL
18 GREASE NIPPLE BRASS/STEEL
19 NAME PLATE ALUMINIUM / SS
20 BEARING STANDARD
DIMENTION TABLE I50#
SIZE 25 40 50 65 80 100 125 150 200 250 300 350 400 450 500 550 600 650 700 750
'A' 165 165 178 190.5 203 229 254 267 292 330 356 380 406.5 432 457 457 483 508 559 610
B 51 73 92 105 127 157 186 216 270 324 381 413 470 533 584 584 --- 692 --- ---
F 79.2 98.5 121 140 152 190 216 241 298 362 432 476 539.5 578 635 635 — 749.5 --- ---
D 108 127 152 178 190 229 254 279 343 406 483 533 597 635 698 698 --- 813 --- ---
T 14 16 16 17 19 24 24 25 29 30.2 31.8 35 36.6 39.7 42.9 42.9 --- 47.7 --- ---
E 4 4 4 4 4 8 8 8 8 12 12 12 16 16 20 20 --- 20 --- ---
G 16 16 19 19 19 19 22 22 22 25 25 29 29 32 32 32 --- 35 --- ---
'H' 152 152 203 203 254 254 305 305 305 408 457 457 508 508 610 610 660 660 711 711
330 330 360 415 425 510 595 685 770 940 1030 1270 1450 1600 1810 1810 2725 2725 2800 3130
Wt. Kg. --- 20 28 33 55 70 90 130 225 330 450 530 625 825 825 1210 1210 1415 1620
DIMENTION TABLE Gate Valve300#
VALVE SIZE IN MM 50 65 80 100 125 150 200 250 300 350 400 450 500 550 600
'A' 216 241 282.5 305 381 403 419 457 502 762 838 914 991 1092 1143
B 92 105 127 157 186 216 270 324 381 413 471 533 584 ---- 692
F 127 149 168 200 235 270 330 387.5 451 514.5 571.5 628.5 686 ---- 813
D 165 190 209 254 279 318 381 444 521 584 648 711 775 ---- 914
T 22 25 29 32 35 37 41 47.7 50.8 54 57.2 60.4 63.5 ---- 69.9
E 8 8 8 8 8 12 12 16 16 20 20 24 24 ---- 24
G 22 22 22 22 22 22 25 29 32 32 35 35 35 ---- 41
'L' (app) 410 450 485 615 725 835 1015 1230 1555 1720 1970 2160 2410 2550 2810
'H' (app) 200 250 250 300 350 350 450 500 500 600 600 680 760 760 760
Wt. Kg. (app) (F/E) 32 35 55 80 100 150 225 350 480 745 1060 1325 1725 1900 2570
TEST PRESSURE
CLASS HYDROSTATIC PENUMATIC TEST WORKING
BODY SEAT & BACK SEAT TEMP.
150 30 Kg/cm‑ 22 Kg/cm' 7 Kg/cm` 500 F°Max.
