3 PC Design

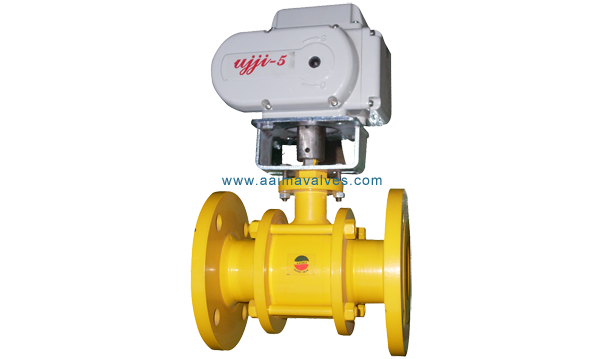

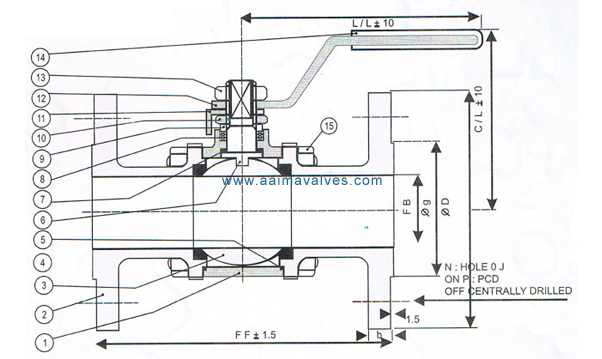

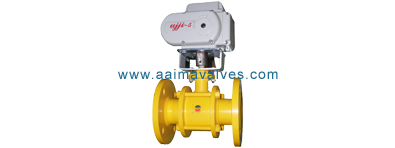

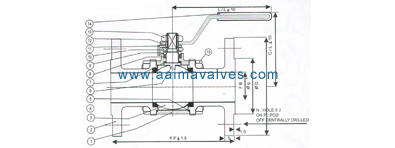

| PARTS / MATERIALS LIST | |||
| Part No. | Qty. | NOMENCLATURE | MATERIAL |
| 1 | 1 | Body | ASTMA 351 Gr. CF8/CF8M CF3/CF3M |
| 2 | 2 | Body Connector | ASTMA 351 Gr. CF/8CF8M CF3/CF3M |
| 3 | 1 | Ball | -do-/AISI-304/3161304L/316L |
| 4 | 1 | Stern | AlS1-304/316/304L/316L |
| 5 | 2 | Ball Seals | P.T.F.E |
| 6 | 2 | Body Seals | P.T.F.E. |
| 7 | 1 | Stem Seals | P.T.F.E. |
| 8 | 3 | Gland Packings | P.T.F.E. |
| 9 | 1 | Gland | AlS1-304/316/304L1316L |
| 10 | 1 | Gland Nut | SS-304/Steel |
| 11 | 1 | Stopper | SS-304/Steel Cd. Plated |
| 12 | 1 | Wrench | SS-304/Steel Cd. Plated |
| 13 | 1 | Wrench Nut | SS-304/Steel Cd. Plated |
| 14 | 1 | Wrench Sleeve | P.V.C. |
| 15 | 4/8 | Body Studs & Nuts | SS-304/Steel Cd. Plated |
| Product Range : 8 mm to 50 mm | |
| 1 | Construction 3 pc : Floating ball, Soft seated, non fire safe design ball valve. |
| 2 | Design & Mfg, std. : BS - 5351 |
| 3 | Inspection And Testing Std : BS - 5146 |
| 4 | Face to Face : As per ANSI B-16.10 |
| 5 | End connection : Flanged as per ANSI B-16.5 RF |
| Representative Valve Dimensions (Dimensions in mm) | ||||||||||
| SIZE | FB | F/F | 70 | L/L | 0 D | b | 0 g | P | N | 0 J |
| 15 | 13 | 108 | 75 | 130 | 89 | 11.1 | 35 | 60.5 | 4 | 16 |
| 20 | 19 | 117 | 80 | 130 | 98.5 | 11.1 | 43 | 70 | 4 | 16 |
| 25 | 25 | 127 | 90 | 175 | 108 | 11.1 | 51 | 79.5 | 4 | 16 |
| 40 | 38 | 165 | 100 | 220 | 127 | 14.3 | 73 | 98.5 | 4 | 16 |
| 50 | 51 | 178 | 150 | 245 | 152.5 | 16 | 92 | 121 | 4 | 19 |
| 65 | 64 | 190 | 175 | 350 | 178 | 17.5 | 105 | 140 | 4 | 19 |
| 80 | 76 | 203 | 195 | 450 | 191 | 19 | 127 | 152.5 | 4 | 19 |
| 100 | 102 | 229 | 500 | 229 | 24 | 157 | 190.5 | 8 | 19 | |
| TEST PRESSURE (PSIG / Kg / Cm2) | ||
| CLASS | TEST PRIOSSURE | 300 |
| BODY | 435/30.5 | 1100/77 |
| SEAT | 320/22.5 | 800/56 |
| SEAT-AIR | 100/7 | |
