1 PC Design

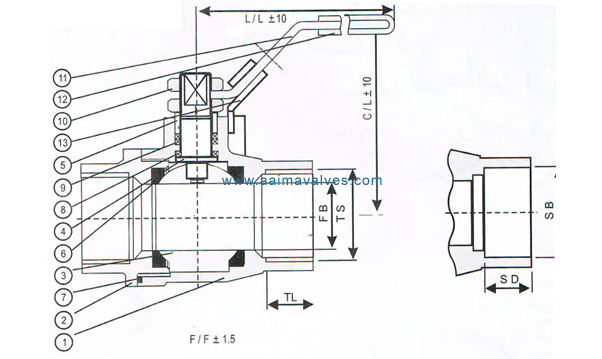

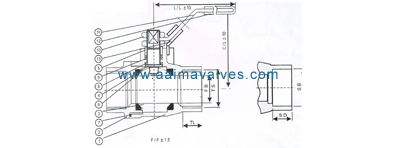

| PARTS / MATERIALS LIST | |||
| Part No. | Qty. | NOMENCLATURE | MATERIAL |
| 1 | 1 | Body | ASTMA 351 Gr. CF8/CF8M CF3/CF3M |
| 2 | 1 | Body Connector | ASTMA 351 Gr. CF/8CF8M CF3/CF3M |
| 3 | 1 | Ball | -do-/AIS1-304/316/304L/316L |
| 4 | 1 | Stem | AlS1-304/316/304L1316L |
| 5 | 1 | Gland | AlS1-304/316/304L/316L |
| 6 | 2 | Ball Seals | P.T.F.E. |
| 7 | 1 | Body Seals | P.T.F.E, |
| 8 | 1 | Stem Packing | P.T.F.E. |
| 9 | 2 | Gland Packings | P.T.F.E. |
| 10 | 1 | Stem Nut | SS-304/Steel |
| 11 | 1 | Wrench | SS-304/Steel Cd. Plated |
| 12 | 1 | Wrench Sleeve | P.V.C. |
| 13 | 1 | Locking Clip | SS-304/Steel |
| Product Range : 8 mm to 50 mm | |

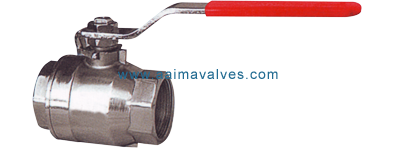

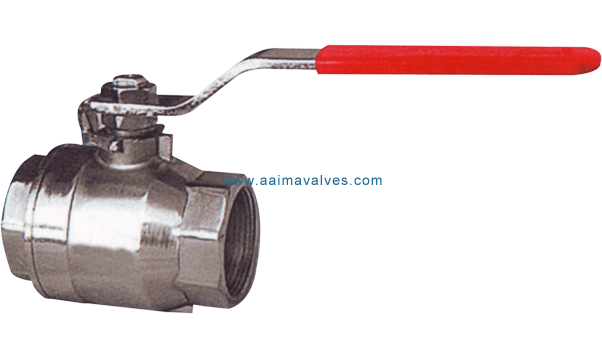

| 1 | Construction 1 pc : Floating ball, Soft seated, non fire safe design ball valve. |
| 2 | Design & Mfg, std. : BS - 5351 |
| 3 | Inspection And Testing Std : BS - 5146 |
| 4 | Face to Face : As Shwon |
| 5 | End connection a .Screwed : B.S.P.-parallel Thd's B.S.P.T. Taper Thd's N.P.T. |
| 6 | Socker Weld : As per ANSI B 16.11 |
| REPRESENTATIVE VALVE DIMENSIONS (Dimensions in mm) | ||||||||
| SIZE | FB | F/F | C/L | L/L | TS | TL | SB | SD |
| 8 | 10 | 52 | 45 | 110 | 1/4" | 10.21 | 14.4 | 10 |
| 10 | 10 | 52 | 45 | 110 | 3/8" | 10.36 | 17.8 | 10 |
| 15 | 13 | 65 | 50 | 110 | 1/2" | 13.56 | 21.8 | 10 |
| 20 | 19 | 70 | 65 | 130 | 3/4" | 13.87 | 27.4 | 13 |
| 25 | 24 | 85 | 75 | 155 | 1" | 17.35 | 34.1 | 13 |
| 32 | 31 | 92 | 90 | 170 | 11/4" | 17.95 | 42.6 | 13 |
| 40 | 37 | 100 | 95 | 170 | 11/2" | 18.38 | 49 | 13 |
| 50 | 50 | 120 | 100 | 170 | 2" _ | 19.23 | 61 | 16 |
| TEST PRESSURE (PSIG I Kg Cm2) | ||
| TEST PRESSURE | ||
| TESTING | BODY | SEAT |
| HYDRAULIC | 435 PS1G | 320 PSIG |
| PNEUMATIC | 100 PSIG | |
| OPTIONS : | |
| 1 | Other material on request |
| 2 | 300 class Valves on request |
| 3 | Hollow Ball on request |
| 4 | Pneumatic operation on request. |
