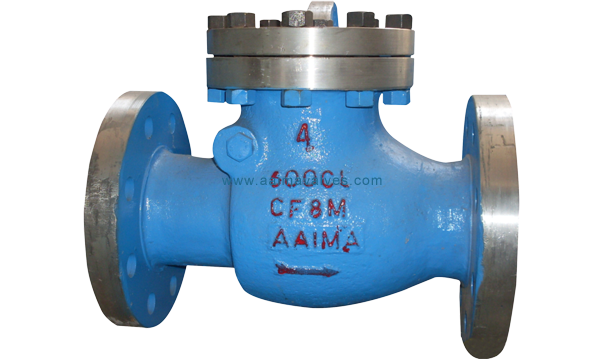

Check Valve Part 2

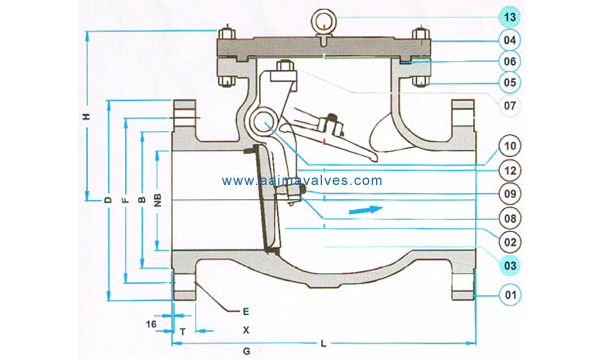

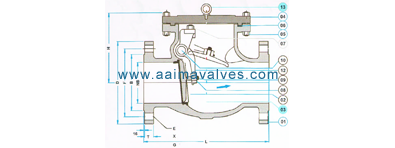

PARTS / MATERIALS LIST
Part No. DESCRIPTION MATERIAL
1 BODY WCB WC6 CF8/CF8M
2 DISC A15/13% Cr. FACING ON WCB CA 15/13% Cr. CF8/CF8M
3 SEAT RING A 515-70/13% Cr +STELLITED SS 304+ STELLITED T304/T316+ STELLITED
4 TOP COVER WCBB7/2H WC6 CF8/CF8M
5 STUD & NUT B7/2H B16/7 B818
6 GASKET B8/8
7 BRACKET STUD & NUT SPW S.S. 304/16 WITH CAF
8 WASHER T410 T304 T316
9 DISC NUT Gr. 8
10 HINGE PIN T410 T304 T316
11 NAME PLATE ALUMINIUM / SS
12 HINGE WCB/Gr. 70 WC6/CF8 CF8/CF8M
13 LIFTING EYE BOLT ASTM A 105
TEST PRESSURE
CLASS HYDROSTATIC PENUMATIC TEST WORKING
BODY SEAT & BACK SEAT TEMP.
150 30 Kgicm2 22 Kgicm2 7 Kg/cm2 500 F0 Max.
300 1100 PSIG 800 PSIG 7 Kg/cm2 850 F0Max.
TECHNICAL DATA
Manufacturing Std. : BS 1868
Testing and Inspection Std :API 60
End Connection : Flanged as per ANSI B 16.5 RF
• Seat Weld 8 and above
• Lifting Eye Bolt 6 NB and above
• Disc Stelliting Optional
DIMENTION TABLE - SWING CHECK VALVE I50#
SIZE 50 65 80 100 125 150 200 250 300 350 400 450 500 550 600 650 700 750
L 203 206 241 292 330 356 495 622 698 787 864 978 978 1067 1295 1295 1488 1524
B 92 105 127 157 186 216 270 324 381 413 470 533 584 --- 692 --- --- —
F 121 140 152 190 216 241 298 362 432 476 539.5 578 635 --- 749.5 --- --- ---
D 152 178 190 229 254 279 343 406 483 533 597 635 698 --- 813 --- --- ---
T 16 17 19 24 24 25 29 30.2 31.8 35 36.6 39.7 42.9 --- 47.7 --- --- ---
E 4 4 4 8 8 8 8 12 12 12 16 16 20 --- 20 --- --- ---
G '19 19 19 19 22 22 22 25 25 29 29 32 32 --- 35 --- --- ---
'H' (app) 145 165 170 205 225 255 300 340 480 590 595 545 600 695 750 775 800 825
Wt. Kg. app (F/E) 18 25 32 52 56 92 136 220 345 485 570 770 1055 1255 1325 1500 1650 1865
DIMENTION TABLE - SWING CHECK VALVE 300#
VALVE SIZE IN MM 50 65 80 100 125 150 200 250 300 350 400 450 500
L 267 292 318 356 400 444 533 622 711 838 864 978 1016
B 92 105 127 157 186 216 270 324 381 413 470 533 584
F 127 149 168 200 235 270 330 387.5 451 514.5 571.5 628.5 686
D 165 190 209 254 279 318 381 444 521 584 648 711 775
T 22 25 29 32 35 37 41 47.7 50.8 54 57.2 60.4 63.5
E 8 8 8 8 8 12 12 16 16 20 20 24 24
G 22 22 22 22 22 22 25 29 32 32 35 35 35
'H' (app) 155 215 185 220 245 275 300 375 430 520 560 686 610
Wt. Kg app (F/E) 25 40 60 80 105 130 215 345 470 685 998 1050 1220
