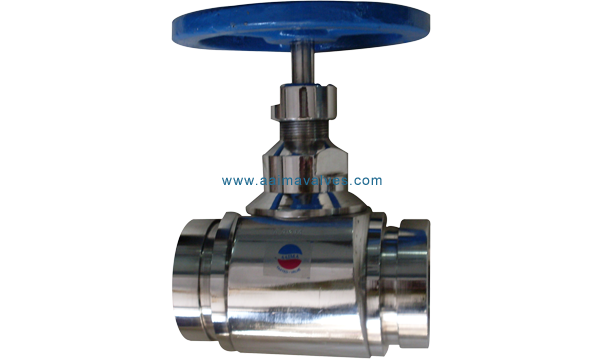

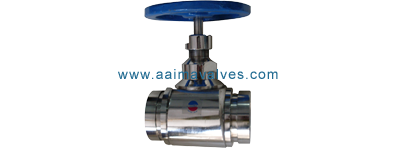

Globe Valve Part 4

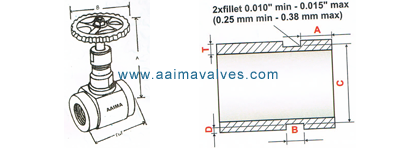

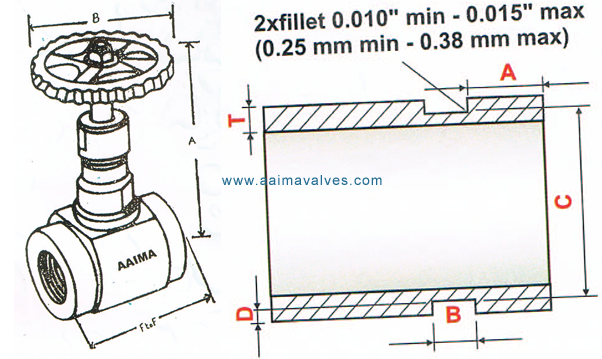

SIZE in Each	1/4" 3/8"	1/2"	314"	1"	1.1/4"	1.1/2"	2"	2.112"	3"	4"
F to F S/E	60	63	70	80	90	100	120	135	150	180
A	-	95	105	, 125	135	155	165	185	235	-
B	-	65	68	75	83	96	120	140	140	-
F to F Flange		90	95	100	115	120	130	150	165	175

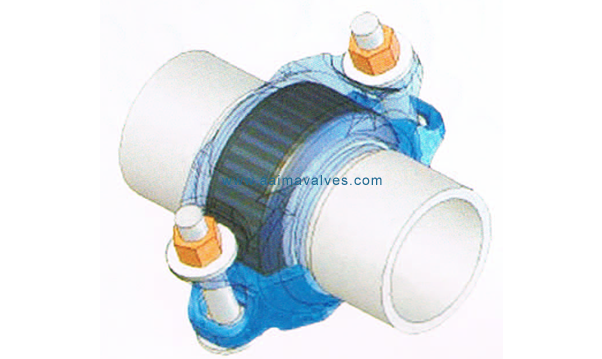

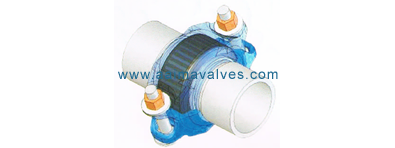

Victolik	-	95	95	110	130	130	150	195	210	-

TECHNICAL DATA :
1	Material of Construction : SS-2205 (Duplex)/304/316
2	Pressure Testing : SEAT - 450 PSI BODY - 550 ASI
3	Ends Connection : SCREWED END / SOCKET WELD / TABLE E' & F' ASA
	150 IS REQUIRED
