Filter

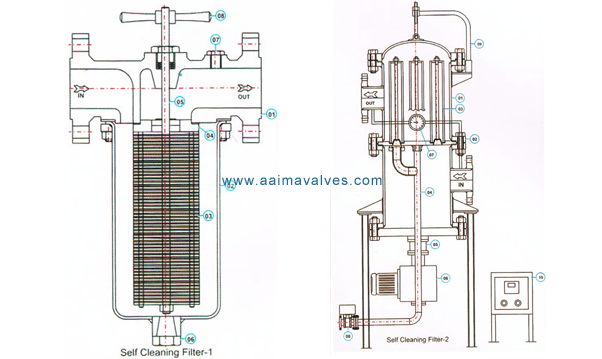

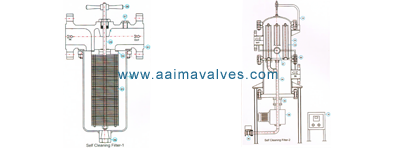

| SELF CLEANING FILTER - I | |||
| MATERIAL SPECIFICATION | |||
| Part No. | Qty. | DESCRIPTION | MATERIAL |
| 1 | 01 | BODY | C.I / C.S. / AISI 304 / 316 |
| 2 | 01 | BOUL | C.S. ! AISI 304/316 |
| 3 | --- | SCREPAR | C.S. / AISI 304/316 |
| 4 | 01 | SCREEN | C.I / C.S. / AISI 304 / 316 |
| 5 | 01 | SPINDLE | AISI 304/306 |
| 6 | 01 | DRAIN | C.S. I AISI 304/316 |
| 7 | 01 | VENT | C.S. /AISI 304/316 |
| 8 | 01 | HANDLE | C.S. / AISI 304/316 |
| SELF CLEANING FILTER -2 | |||
| MATERIAL SPECIFICATION | |||
| Part No. | Qty. | DESCRIPTION | MATERIAL |
| 1 | 02 | SHELL | C.S. / AISI 304 / 316 |
| 2 | 08 | FLANGE | C.S. / AIS1 304 / 316 |
| 3 | --- | WQEDGE WIRE CYLINDER | CS.! AISI 304 / 316 |
| 4 | 01 | SHAFT | C.S. / AISI 304 / 316 |
| 5 | 01 | MECHANICAL SEAL | STAINLESS STEEL |
| 6 | 01 | ELECTRIC MOTOR | C.I. / C.S. |
| 7 | 01 | DIFFE. GAUGE | STD |
| 8 | 01 | BACK WASH VALVE | CI / C.S. / AISI 304 / 316 |
| 9 | 01 | DEVIT | C.S. / AISI 304 / 316 |
| 10 | 01 | ELECTRIC BOARD | STD |
| TECHNICAL DATA | |
| STD. Specification Required With Enquiry. | |
| 1 | Intel Outlet Size & Rating |
| 2 | Fluid To Be Handled |
| 3 | Viscosity of fuid. |
| 4 | Fluid temp. |
| 5 | Degree of Filtration |
| 6 | Working Pressure |
| 7 | Allowable Pressure drop |
| 8 | Material of Construction |
| 9 | Qty. of Strainer required. |
